Product Details
W800 latest series
Classification:
Product Description
Key words:
Product Introduction
Product Features
Intel Low-power Solution: providing users with a stable and environmentally friendly operating experience;
Windows Operating System: meets various font requirements, customizes patterns and font libraries to simplify complexity;
Independent Power Supply Design: The equipment has a more stable power supply, lower maintenance costs, and smoother system operation;
Self Developed Fourier Function Charging Algorithm: making ink droplet charging more accurate, meeting the high-definition needs of various barcodes, QR codes, and DM QR codes, resulting in higher reading rates and faster speeds;
Independent Deployment of Operation Display: users can freely switch the operation panel for convenient operation;
Remote Control: breaking through the bottleneck of difficult after-sales maintenance, users only need to control the inkjet printer through WIFI;
Automatic Sealing Nozzle: not only does it save consumables and on/off time, avoid blockages, reduce failure rates, but it can also achieve unmanned operation and has the ability to upgrade the Industry 4.0 unmanned workshop at any time;
Supports Multiple External Devices: can be connected to keyboards, mice, and monitors, and can be connected to various external devices through USB interfaces.
Parameter Configuration
| Explanation | Parameter | |
| Nozzle | Nozzle sealing technology | ✔ |
| Nozzle size | 40, 50, 60, 70 microns | |
| Spray nozzle diameter | 43mm/45mm | |
| Nozzle length | 218mm/245.8mm | |
| Throat length | Standard 3m, optional 6m | |
| Throat diameter | 20mm | |
| Throat bending radius (min.) | 65mm | |
| Spray printing ability | Linear velocity | Max:340m/min (5 points) Min:15m/min(34 points) |
| Max. number of spray code lines | 1-6 rows | |
| Spray printing dot matrix | 34 points | |
| Spray code height | 0.8mm-12mm (microprinter 0.6mm-10mm) | |
| Spray printing distance | Optimal distance of 10mm range of 2mm to 20mm |
|
| Environment | Working temperature | 5℃-45℃ |
| Humidity | Relative humidity of 30% -90% without frost formation | |
| Special environment (optional) | Spray head positive pressure air pump air drying component | |
Application Area

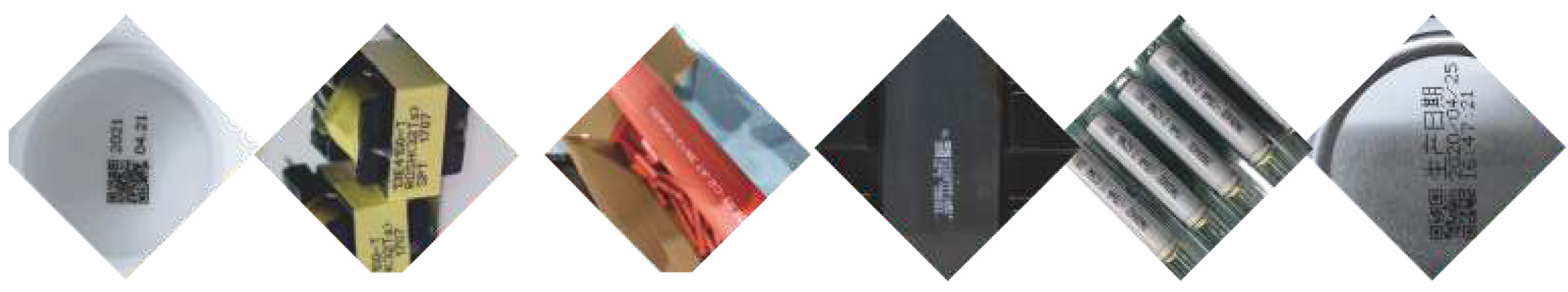

Mainly used in industries such as food, beverages, wires and cables, building materials, electronics and electrical, healthcare, cosmetics and personal care, chemical and tobacco.
Weili brand-the creator of quality logo. We are committed to providing high-quality logo technology and services for manufacturers around the world. In order to meet the market demand, Weili brand has developed W700M series small character inkjet printer suitable for small and medium-sized enterprises. Its excellent stability, better than a variety of harsh working environment, high-quality printing and high utilization of consumables, effectively improve production efficiency and cost savings.
